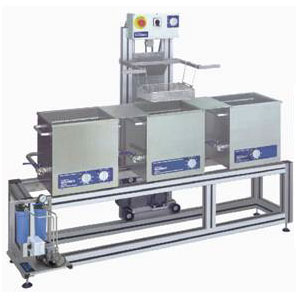

Amtrex Flexible System uses a line-up of standard, modular ultrasonic cleaning tanks. This arrangement of equipment gives you the flexibility to suit a single, multi-stage and multi-functional applications.

The lift, oscillation, and transfer system is specifically designed to enhance the cleaning efficiency of the ultrasonic and to reduce the cleaning cycle time – particularly for parts with blind holes and crevices.

Each individual tank is equipped with its own control and instrumentation : Level control, ultrasonic cycle timer, temperature controller. Construction design includes : Overflow weir, fill port, drain and stainless steel ball valve, surface skimmer manifold and more.

Typical line configuration could include the following process stages:

• Cleaning
• Cascaded rinses
• Passivation
• Surface protection
• Drying

By design, all tanks are pre-fitted with the necessary plumbing to expand the system in the future with peripheral equipment such as:

• Filtration-recirculation
• Oil separator
• DI Water system
